Automatic controller configuration
The software programs the supported Keyence controller for the measurement function. Keyence LS-Navigator2 is not needed for normal operation.
One measurement system · one to six wires
Measure multiple wires at the same time.
MultiWire MeasureOD® connects your supported Keyence optical micrometer system to a shared operator interface for live measurements, process statistics, and Excel reporting.
Software for Windows 10 and Windows 11. Compatible measurement hardware is supplied by the customer.
1–6 wiresMeasure multiple wires in one system
LS-9501 / LS-9501PSupported Keyence controllers
Two-head operationSupported by MultiWire MeasureOD®
From sensor to process view
Keep measurements visible while production runs.
MultiWire MeasureOD® automates Keyence controller setup and brings per-wire results into one operator interface.
Graphs and process statistics
Review time-based measurements and real-time statistics across active wire channels, with selectable Cpk targets.
Measurement lot history
Assign a sequential tracking number to measurement lot history records and retain production measurements.

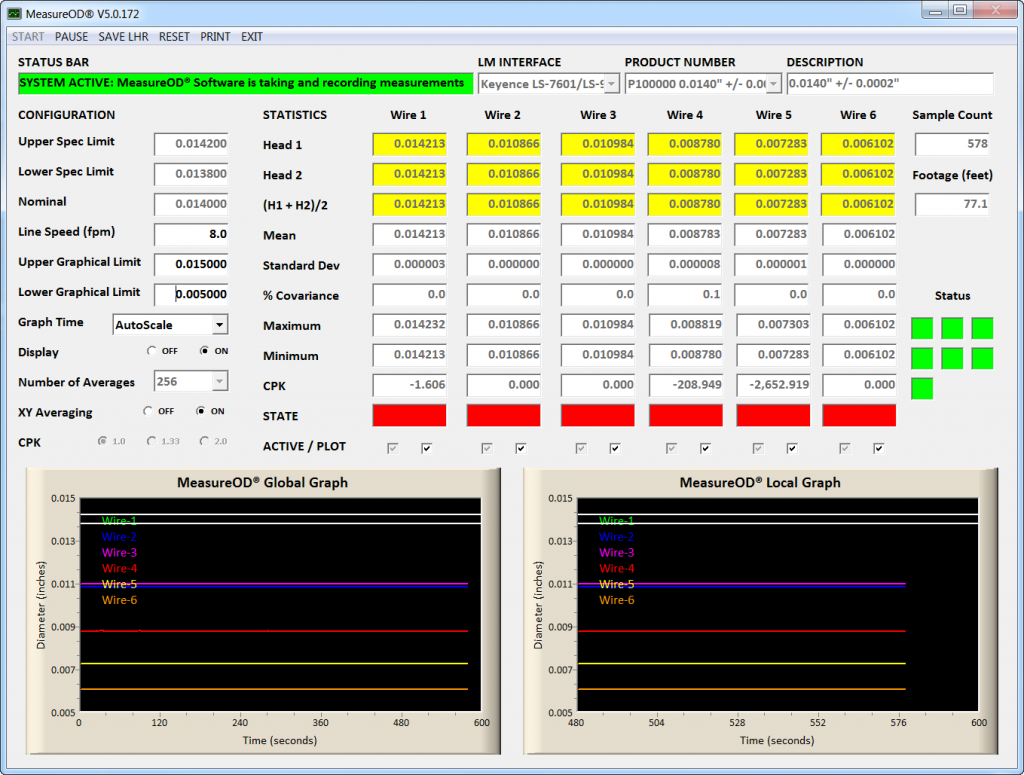

Operator interface
See each wire in one workspace.
The operator view brings per-wire measurements, process statistics, and live graphs together for production review.
The screenshot is included as an interface example; it does not change the supported hardware list.
View supported Keyence hardware →
Excel output
Take the run results with you.
Export measurement data, graphs, and SPC summaries to Microsoft Excel in a ready-to-print format.
- Review current measurement results
- Print or save the exported workbook
- See the Excel page for the reporting workflow
Planning a MultiWire installation?
Review controller compatibility, cabling, and network requirements before ordering.
